高性能擠壓解決方案High Performance Extrusion Solution

專為極端
環境打造 ENGINEERED
FOR EXTREME

炬禾鋭專為 AL7xxx, AL2xxx, AL6xxx, AL5xxx 高難度鋁合金擠壓模具提供全方位熱作鋼解決方案。導入業界最高標準的 ESR 精煉與 Extra Fine Structure 超細組織技術，極大化您的模具生命週期。 KINGRAY provides comprehensive hot work tool steel solutions specifically engineered for high-difficulty aluminum extrusion dies (AL7xxx, AL2xxx, AL6xxx, AL5xxx). By integrating the industry's highest standards of ESR refining and Extra Fine Structure technology, we maximize your die life cycle.

探索生產技術Explore Technology
品質認證Certified by
NADCA #229
供應尺寸Supply Range
直徑 100 - 900mmDia. 100 - 900mm

Production Layout

先進冶金製程Advanced Metallurgical Processing

UHP / EBT

30-45t/36(30)MVA

LF+VD

45t / 8MVA

BLOCK CASTING

380 - 42.000 kg

ESR 37

rd 500

ESR 36T

rd 1000

ESR 50T

rd 1400

BLOOMING MILL

5.700 Kw/ø= 930 mm

FORGING MACHINE

GFM SXP 40

FORGING PRESS

12 MN

FORGING PRESS

25 - 30 MN

FORGING PRESS

40 - 45 MN

MIDDLE SECTION MILL

5.700 Kw/ø= 930 mm

HEAT TREATMENT

FORGING MILL

MACHINING

HEAVY SECTIONS

LIGHT SECTION MILL

5.700 Kw/ø= 930 mm

HEAT TREATMENT

ROLLING MILL

FINISHING

PEELING, GRINDING

專業條件選材系統Professional Material Selector

請選擇您的擠壓條件，系統將根據材料特性矩陣，自動為您推薦最合適的炬禾鋭特殊鋼。 Please select your extrusion conditions. Our system will automatically recommend the optimal KINGRAY special steel based on the material property matrix.

Material Analytics

化學成分與性能指標Chemical Composition & Performance

可供應尺寸：Available Diameter: 100mm - 900mm

化學成分 (%)Chemical Composition (%)

S361
c
0.38
si
0.25
mn
0.40
cr
5.00
mo
1.80
v
0.60
ni
1.60
S350
c
0.38
si
0.25
mn
0.40
cr
5.00
mo
1.30
v
0.50
ni
0.10

導熱率與韌性表現Thermal Conductivity & Toughness

S361
旗艦級性能Flagship Performance
35+ W/m·K
S350
高階平衡Premium Balance
30 W/m·K
1.2343 / 1.2344
標準選擇Standard Selection
28 W/m·K

擠壓模具鋼種推薦Extrusion Die Recommendations

AL6xxx Series
S361★★★★★
S350★★★★★
1.2344★★★★
AL5xxx Series
S361★★★★★
S350★★★★★
1.2344★★★★
AL7xxx Series
S361★★★★★
空心模 Hollow DieHollow Die
1.2367★★★★
實心模 Solid DieSolid Die
AL2xxx Series
S361★★★★★
空心模 Hollow DieHollow Die
1.2367★★★★
實心模 Solid DieSolid Die
金相組織檢驗Metallographic Inspection

NADCA #229
微觀結構標準Microstructure Standard

炬禾鋭承諾提供最高等級的內部組織品質。確保所有出廠鋼材均達到 AS1 - AS9 或是 HS1 - HS9 的優良微觀結構，徹底杜絕粗大網狀碳化物與偏析現象。 KINGRAY is committed to delivering the highest grade of internal microstructure. We guarantee all outgoing steel achieves excellent microstructures of AS1 - AS9 or HS1 - HS9, completely eliminating coarse network carbides and segregation.

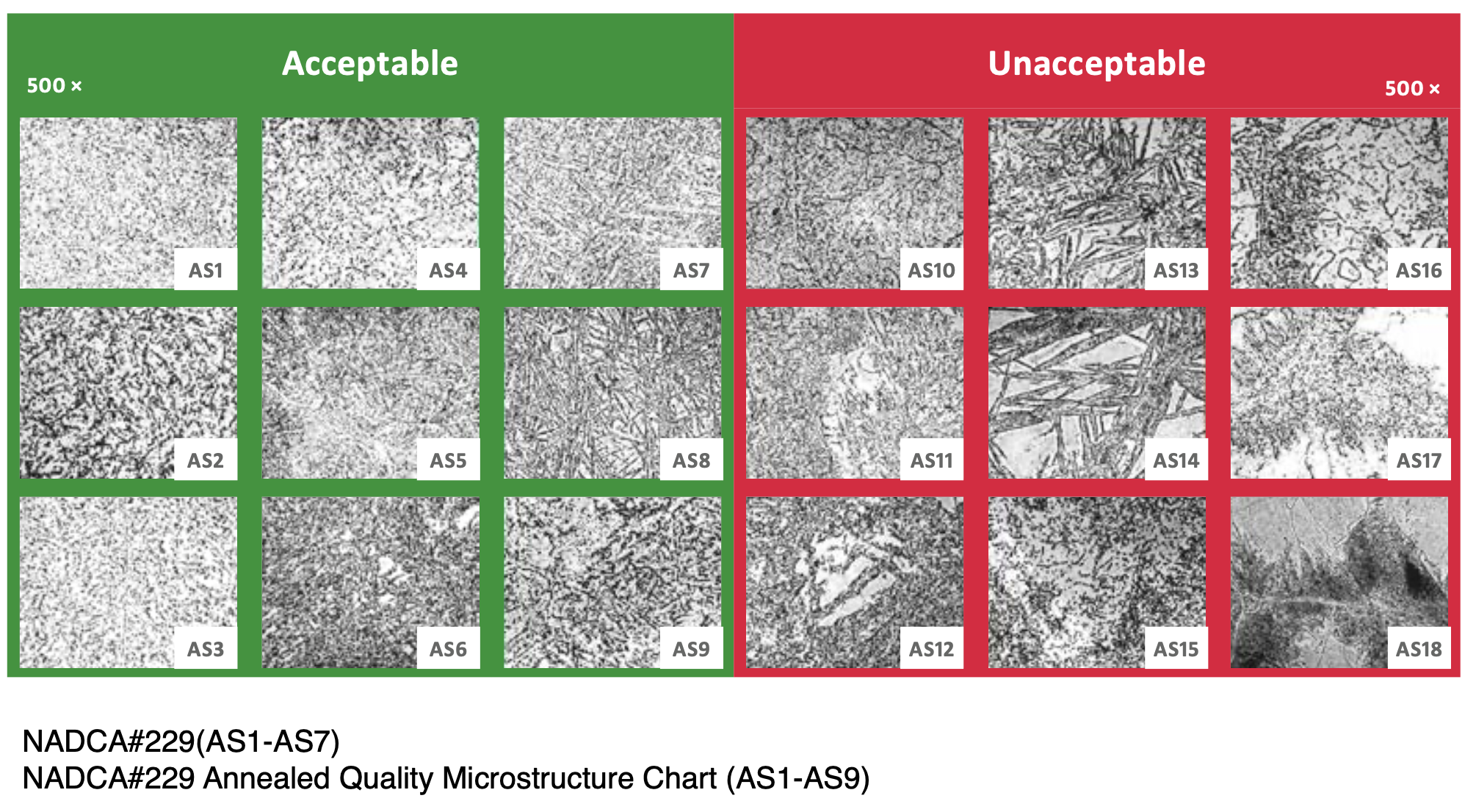

金相檢驗原圖 (500x)Original Quality Charts (500x)
Quality Chart
← 合格 (細緻組織)← Acceptable (Fine Structure) 不合格 (粗大組織) →Unacceptable (Coarse Structure) →
